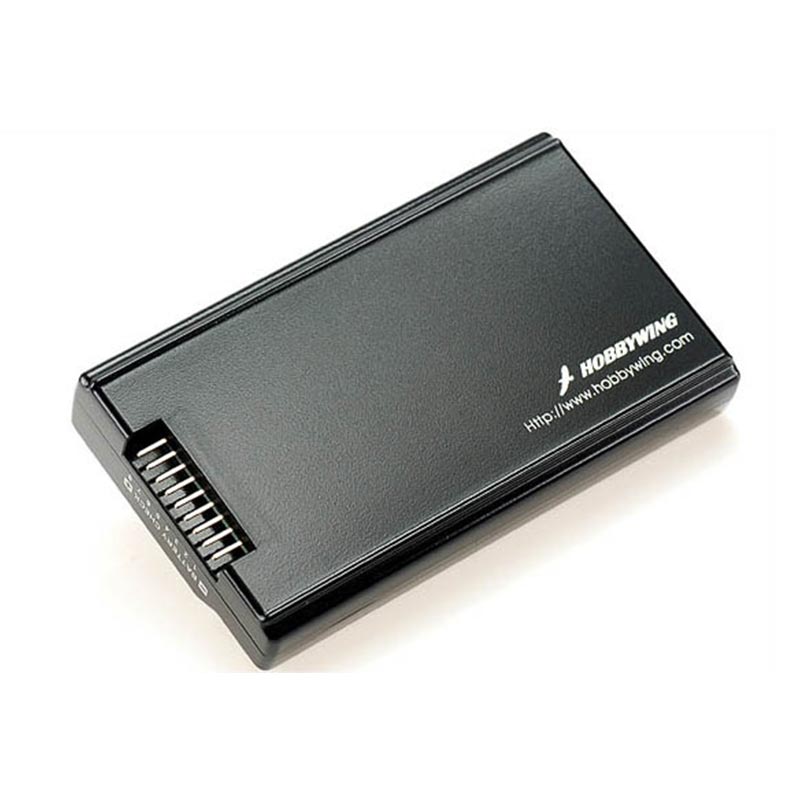

Hobbywing LCD Programm Box for Xerun, Ezrun and Platinum

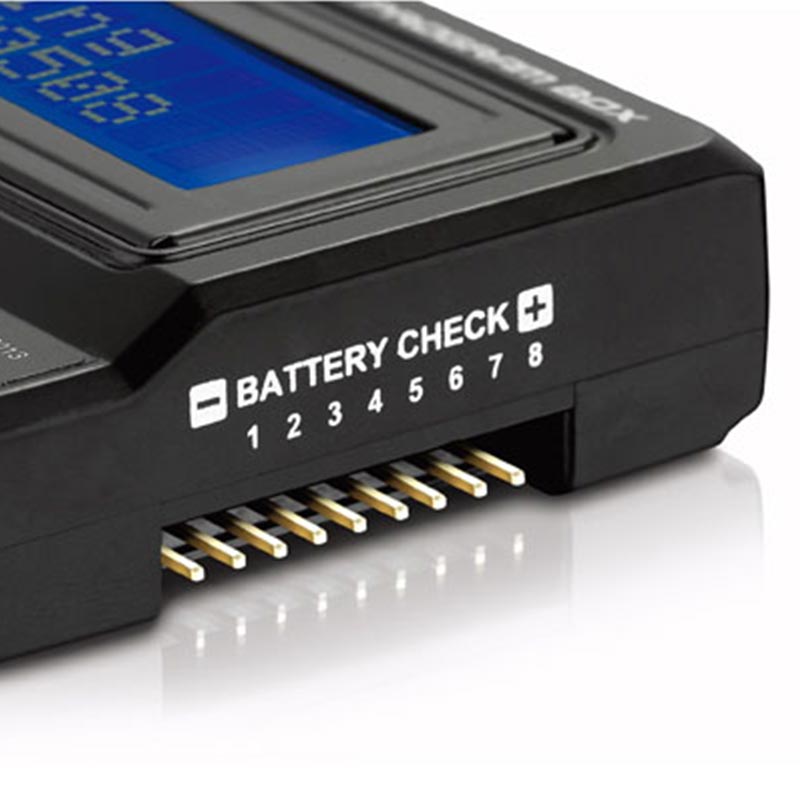

Features: Works as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen. Works as an USB adapter to link the ESC with a PC to update the firmware of the ESC or set the ESC by HOBBYWING USB LINK SOFTWARE . Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack or each cell. Specifications: Size: 90mm (L) * 51mm (W) * 17mm (H) Weight: 65g Input Voltage: 4.5-12.6V (If the ESC hasnt a built-in BEC, you must use an additional battery pack to supply the program box) Displayer: 16*2 characters LCD. Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug) This Multifunction LCD Program Box is suitable for the following ESC: XERUN & EZRUN series Car ESC (Version 2.0 and 2.1) XERUN-120A V3 & V3.1 ESC PLATINUM series helicopter/aircraft ESC PLATINUM V3 series helicopter/aircraft ESC A) The programmable items for the XERUN and EZRUN series car ESC: Running Mode Drag Brake Force Low Voltage Cut-Off Threshold Start Mode Maximum Brake Force Maximum Reverse Force Initial Brake Force Throttle Neutral Range Timing Over-Heat Protection Motor Rotation Lipo Cells Amount *Note: Some speed controllers have less programmable items, but some have more. Please read the user manual of your speed controller to get detail information. B) The programmable items for the PLATINUM series airplane ESC: Brake Battery Type Low Voltage Protection Mode (Cutoff Mode) Low Voltage Protection Threshold (Cutoff Threshold) Start Mode Timing Governor Mode Reserved Item #1 PWM Frequency Built-In BEC Output Reserved Item #2 Lipo Cells Amount C) The programmable items for the PLATINUM V3 series airplane ESC: Brake Battery Type Low Voltage Protection Mode (Cutoff Mode) Low Voltage Protection Threshold (Cutoff Threshold) Flight Mode Autorotation Restart Time Timing PWM Frequency Built-In BEC Output Lipo Cells Amount
